◆ ba
◆ alarm status can be monitored on the end;
◆ E1 interface complies with G.703 all-digital clock recovery and smooth phase-locked technology;
◆ support FXO port and FXS ports wire 2 audio interface FXO port and PBX docking port and
the user is connected to FXS telephone;
◆ 16 * voice access support caller ID function and reverse polarity billing functions;
◆ Support Telephone Number mutual function of each site;
◆ E1 signal can be detected as a barrier to the end device is lost or shut E1;
◆ provide two kinds of clock ways: E1 master clock E1 line clock;
◆ multiple power mode options: AC220V DC-48V / DC24V etc;
◆ E1 Interface
Interface Standard: comply with protocol G.703;
Interface Rate: n*64Kbps±50ppm;
Interface Code: HDB3;
E1 Impedance: 75Ω (unbalance) 120Ω (balance);
Jitter tolerance: In accord with protocol G.742 and G.823
Allowed Attenuation: 0~6dBm
◆ FXS Phone Interface
Ring voltage: 75V
Ring frequency: 25HZ
Two-line Impedance: 600 Ohm (pick up)
Return loss: 40 dB
◆ FXO Switch Interface
Ring detect voltage: 35V
Ring detection frequency: 17HZ-60HZ
Two-line Impedance: 600 Ohm (pick up)
Return loss: 40 dB
◆ Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
◆ Dimension
Product Size: Mini Type 216X140X42mm(WXDXH)
Simple packaging: mini 274X193X84mm(WXDXH)
Piece Weight : mini 1KG / 19inch 2.4KG
◆ Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

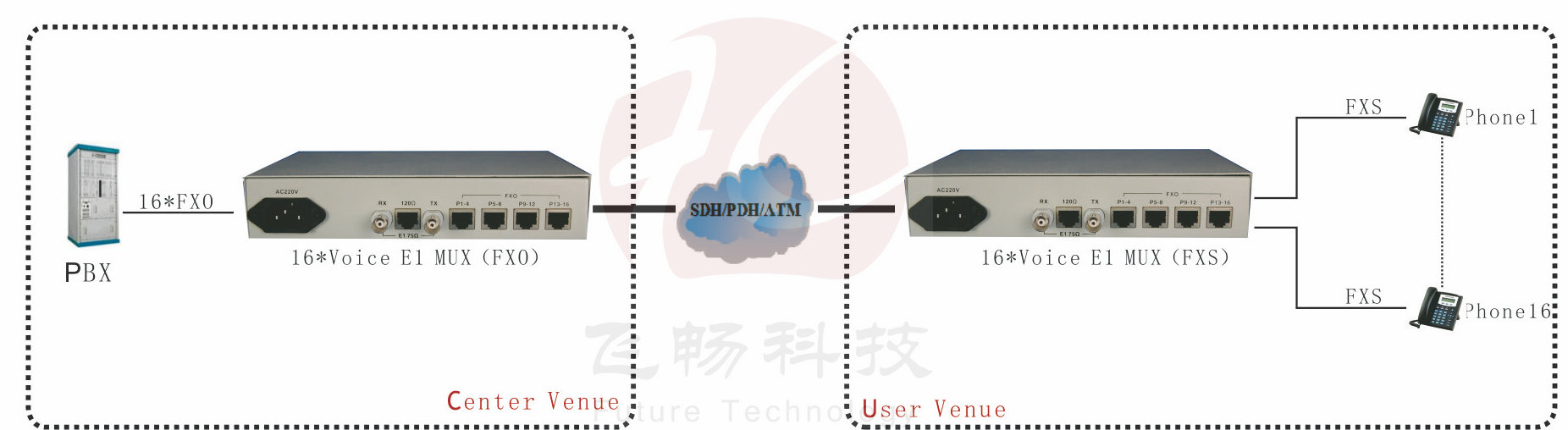

Applications:
tle="POTS Fiber Mux" alt="POTS Fiber Mux" />
