Hello, Welcome to FCTEL Technology Co.,Ltd
National service hotline:+086 0571-87007055/56/57 CN

WE ONLY FOCUS ON TRANSMISSION AND ACCESS

Products center

2U Rack Fiber Media Converter

Type:FCK12-a2 Message

Description:2U Rack ，SNMP，can insert 1 * FE +1 * 100Base-S/LX ，2 * FE +1 * 100Base-S/LX Ethernet Switch Card

Product Description
               This 2U 17 rack. The height of the frame of 2U, can be inserted into the 17 or 1 pieces of card, network card, 16 card, each card, work independently, different types of interface conversion card can be inserted and work at the same time in the same frame; the communication isolation technology to power system and the interface card is completely separate, to ensure the reliability of the whole system the.
Functional Properties
? You can insert this company produces various types of fiber optic transceivers, video Optical, fiber Modem, interface converters, etc.
? 19 英寸 2U standard rack, using air theory, excellent thermal performance chassis, to facilitate unified management and maintenance
? can be inserted up to 16 hot-swappable cards, each card interface converter can independently achieve conversion function

? two power board slots to support dual hot backup power supply unit with each other, support each power unit can be individually

      configured to work full time for the entire rack, working with two power supply units on the one hand to reduce each power through

      the shunt load cells, on the other hand can be guaranteed to work when a power supply unit rack palette problems through mutual

      hot backup,

? Power AC220, DC-48V user selectable, can double AC220V, dual DC-48V, a combination AC220V and DC-48V
? support SNMP network management protocol
? full compliance with the requirements of telecom operators, the average time between failures of more than 50,000 hours
Technical Parameters
u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

u   Dimension

   Product size:   443 X365 X110mm(WXDXH)

   Piece weight:  5.5KG

u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

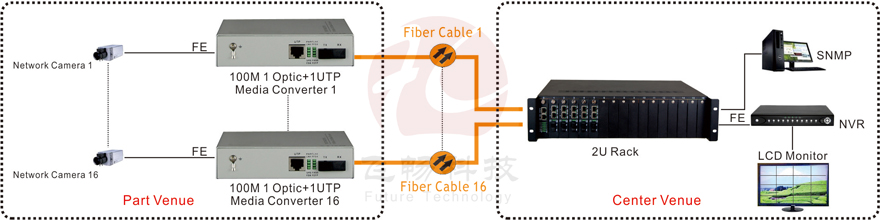

Application Scheme

Applications


DataSheet Download
?
